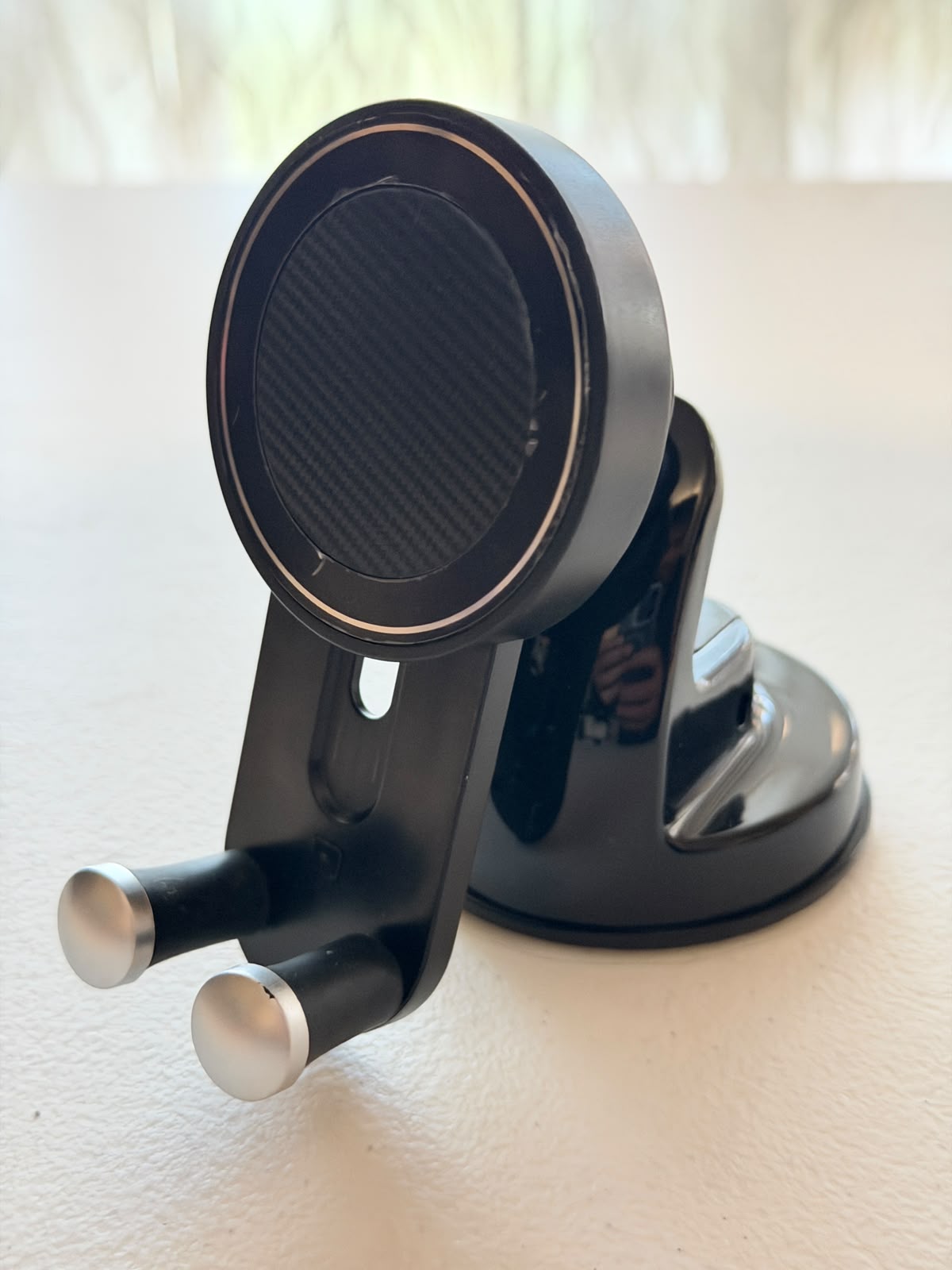

• Dual-Securing System: Combines a circular magnetic plate (with a textured carbon-fiber finish) for quick alignment alongside two solid bottom supporting pegs to prevent vertical slippage.
• Mounting Base: Equipped with a heavy-duty, reusable vacuum suction cup with a locking lever to create an airtight seal on textured dashboards or smooth glass windscreens.

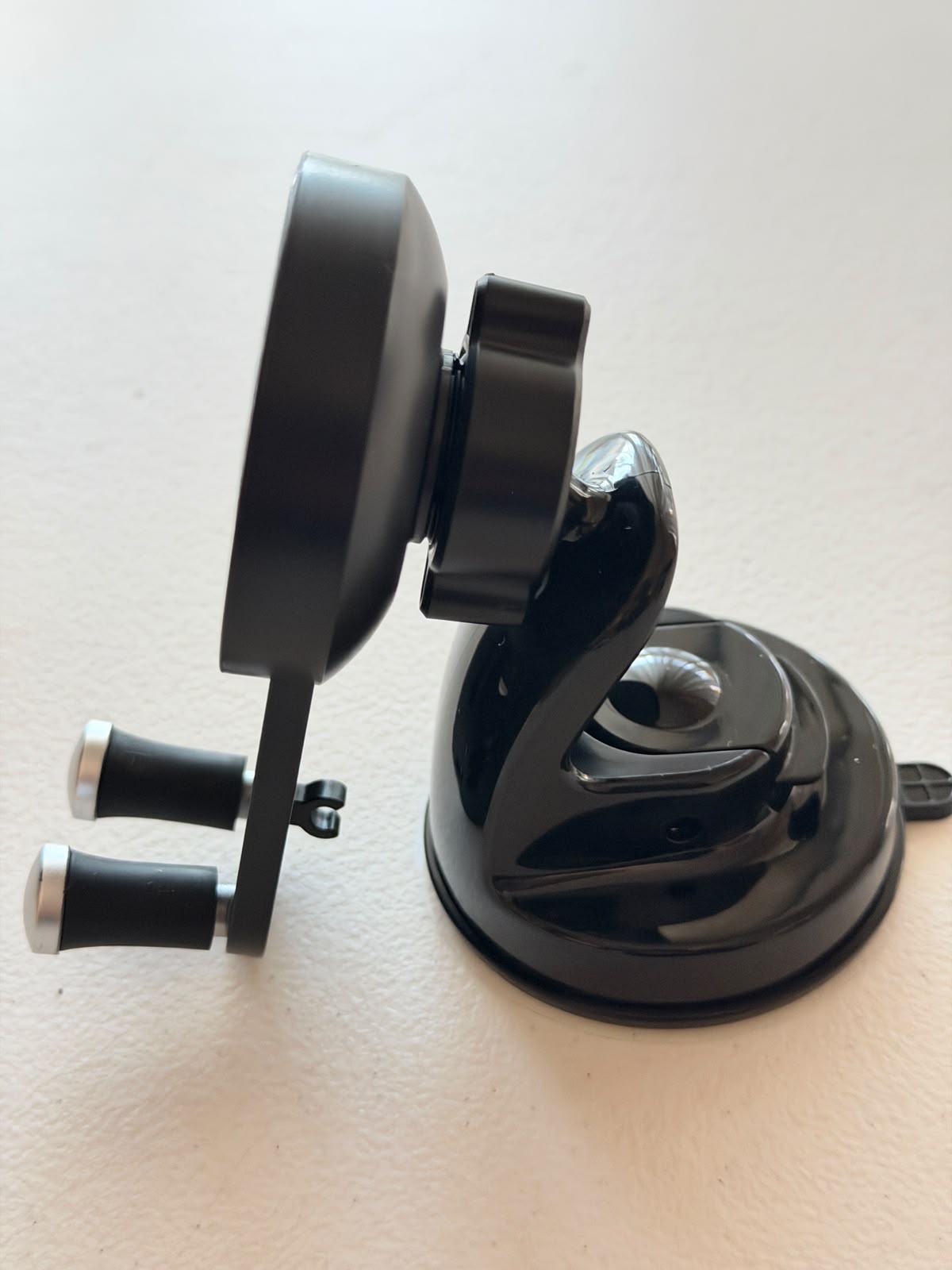

• Articulated Viewing: Features an adjustable ball-joint mechanism locked by a tightening collar to provide 360-degree rotation and flexible tilt angles.

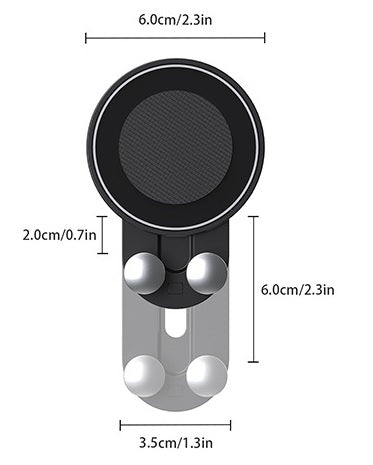

• Vertical Adjustment: The front backing plate includes a slotted channel, allowing you to slide the alignment height up or down to adapt to varying phone lengths.
Step-by-Step Installation
1. Surface Preparation
• Clean the target area of your dashboard or windshield using an alcohol wipe or a lint-free damp cloth.
• Ensure the surface is completely dry and free of oils, dust, or dashboard protective polishes.
2. Mounting the Base
• Pull the lever/tab on the suction cup housing upward to the released position.
• Press the sticky silicone suction base firmly down onto the prepared surface.
• Push the lever down completely to engage the internal vacuum mechanism and lock the base securely.
3. Adjusting the Faceplate Angle
• Slightly loosen the plastic nut behind the circular magnetic head.
• Pivot the mount to your preferred viewing perspective (portrait or landscape).
• Retighten the plastic nut securely to eliminate shaking or vibrations while driving.
4. Setting the Slider Height
• Loosen the small screw/pin located inside the slot on the vertical arm.
• Slide the lower pegs or the top magnetic head up or down so that when your phone's internal magnetic array aligns with the circle, the bottom edge sits squarely on the resting pegs.
• Lock the screw back down to hold the height setting.
